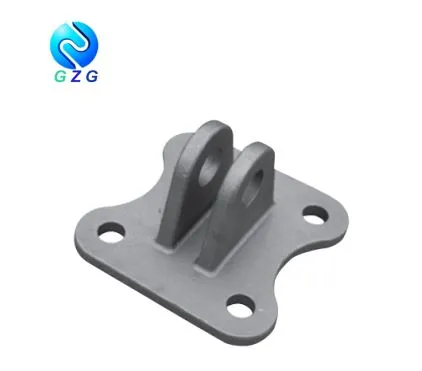

Gegoten afneembare kettingbevestiging

Some clients need this attachment separately, so we put it on GZG website. As an  auxiliary tool, cast detachable chain attachment could work with leaf chain to help chain driving.

Dimensions of Cast Detachable hain Attachment

Ketting Nee.	Dimensies											Gewicht
	A	F	J	K	B	G	T	C	P	D	E
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/stks
5A	91.29	69.85	23.80	11.10	62.78	35.00	6.35	19.05	15.08	7.94	9.53	0.27
39A	76.20	53.98	23.80	11.00	62.78	35.00	6.35	19.05	15.08	7.94	9.53	0.24
Ketting Nee.	Dimensies											Gewicht
	A	F	J	K	B	G	T	C	P	D	E
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	kg/stks
1C	127.00	88.90	33.34	28.58	50.80	25.40	7.94	39.69	23.02	12.70	15.88	0.73
2C	38.10	88.90	34.93	31.75	50.80	25.40	7.94	66.67	25.40	12.70	15.88	0.95
5C	28.80	69.85	33.34	28.58	50.80	20.64	7.94	34.93	21.43	12.70	15.88	0.59

If you need this slaat ons alstublieft het type, uw aantal en materiële vereisten weten, zodat we u snel kunnen citeren.
